Easyroof® is designed to facilitate the installation of single skylights coupled with the most common sandwich panels. The main features are: the system can fit to most common sandwich panels with variable thickness, the good thermal insulation and light transmission, the possibility to create skylights on long sloping roofs (please consider the necessary expansion spaces), the good load resistance, the 10-year warranty against hail, yellowing and loss of light transmission.

Features and benefits

  • Quick and easy to assemble
  • High thermal insulation
  • Excellent impact resistance
  • Good light transmission
  • Self-extinguishing
  • UV Protection
  • 10-year warranty

SPECIALIZED POLYCARBONATE SYSTEMS

Typical application

  • Metal warehouses
  • Industrial constructions
  • Supermarkets

Easyroof Product Range

Product Range

    Thickness Weight (lb/ft2) Weight (g/m2) Light transmission crystal Sound reduction index Cold forming radius Colors

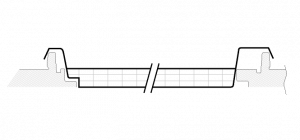

Easy Roof 30/4W- 4227 (Four walls)  30 mm 0.63 3100 52% 21 220 in

Crystal

White

Physical Properties
  UNIT VALUE
Width m .993
Length  m  to 12.20
Thick  mm 30
Number of walls    4
Weight  kg/m2 3.1
Coefficient of solar heat gain  SHGC 0.36
“U” Values  W/m2 0K 1.59
Soundproofing  dB  21
ASTM Impact D-5628-95 J J 0.83
Thermal Expansion mm/m ºC 0.0654
Working temperature range ºC -40 to 120
Bending radius m 5.6
Light transmission
– Glass
Opaline
%
%
52
35
UV Protection   One side
Warranty years 10

Technical Specification

Maximum distance for supports
Distance between supports Load
m Pressure Suction
1.5 2100 Pa     Max. 1400 Pa
1.75 1600 Pa
2 1250 Pa
2.25 950 Pa
2.5 750 Pa
Flammability
Test Classification
ASTM E84-01 Class A-I (NFPA, UBC)
ASTM E84-01 Low smoke density (UBC Standard no. 26-5)
ASTM E84-01 Flame retardant (Classification CC1)
ASTM E84-01 Meets the standard ignition temperature (UBC standard N. 26-6)

Typical application

Commercial Industrial
